Last week, I wrote a post in which I discussed some of the things that I learned about Rust concurrency.
One of the things that I pointed out was that when you spawn a thread within another thread, they both have the main process as their parent, which I demonstrated in this gif:

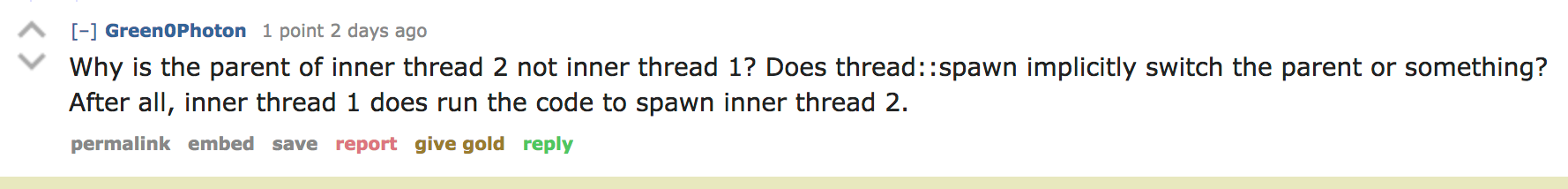

After posting this on Reddit, I got the following question:
This was a thought that occurred to me while I was writing the post originally, but I didn’t really pursue it any further. This was just “how it worked”TM. But, because I’m at the Recurse Center and have the time to be rigorous, and out of desire to answer this person’s question, I decided to actually figure this out.
Before diving in, I do want to point out that I’m using Linux, and the behavior of Rust might differ to what I’m describing here on other platforms.
Let’s Revisit that Code Sample
Let’s begin by revisiting the code sample in question:
use std::{thread, time};
fn main() {
let duration = time::Duration::from_millis(3000);
println!("\nMain thread");
let handle = thread::spawn(move || {
println!("\nInner thread 1");
let handle2 = thread::spawn( move || {
println!("\nInner thread 2");
thread::sleep(duration);
});
handle2.join().unwrap();
thread::sleep(duration);
});
handle.join().unwrap();
thread::sleep(duration);
}
This code is fairly simple. We begin by spawning a thread, and wait on that thread. That thread then spawns another thread.
While the intuition of the aforementioned redditor is that the parent
of “Inner Thread 2” ought to be “Inner Thread 1”, when we examine
what’s happening on the system using htop, we notice that that
isn’t the case.
This has interesting implications, primarily, that it is possible, although not the case in this example, for “Inner Thread 2” to outlive “Inner Thread 1”.
The Rust Docs
Let’s start by seeing what the docs have to say about this: From the docs on threads, we see:
In this example [where a thread is spawned], the spawned thread is “detached” from the current thread. This means that it can outlive its parent (the thread that spawned it), unless this parent is the main thread.
Hm..ok so our understanding of the behavior is correct. However, there isn’t a lot of detail as to why exactly this is the case.
For the remainder of the post, I’ll be focused on how this behavior is achieved.
Where to start?
In order to really understand what is happening here, we need to
get a better handle on what is happening with our system when
the thread::spawn() function call is run. Trying to read through
this code will probably require a lot of time and sorting through
the Rust standard library. Is there an easier way of figuring this out?
Well, let’s start with what we know. We know that thread::spawn()
is creating a new OS thread that is managed by Linux. That means that there’s
probably some system call getting called to create that
new process.
Enter: strace
If that’s the case, then looking at the syscalls made by our
program will probably be pretty helpful. Thankfully, I’ve read
some of Julia Evans’ blog, and know that strace is a thing that exists!
For the uninitiated, strace is a program on unix systems that
can be run on a different program, and prints out all the system
calls that are made as the program runs.
Let’s try running strace on our program to try to figure out
what is causing the new threads to get created. We start with
$ strace ./target/debug/concurrency-bp
A lot of stuff gets printed out, mostly related to opening and closing files:
...
sigaltstack(NULL, {ss_sp=0, ss_flags=SS_DISABLE, ss_size=0}) = 0
mmap(NULL, 8192, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS, -1, 0) = 0x7fd72978f000
sigaltstack({ss_sp=0x7fd72978f000, ss_flags=0, ss_size=8192}, NULL) = 0
write(1, "\nMain thread\n", 13
Main thread
) = 13
futex(0x7fd7295700b0, FUTEX_WAKE_PRIVATE, 2147483647) = 0
mmap(NULL, 2101248, PROT_READ|PROT_WRITE, MAP_PRIVATE|MAP_ANONYMOUS|MAP_STACK, -1, 0) = 0x7fd7281ff000
mprotect(0x7fd7281ff000, 4096, PROT_NONE) = 0
clone(child_stack=0x7fd7283feef0, flags=CLONE_VM|CLONE_FS|CLONE_FILES|CLONE_SIGHAND|CLONE_THREAD|CLONE_SYSVSEM|CLONE_SETTLS|CLONE_PARENT_SETTID|CLONE_CHILD_CLEARTID, parent_tidptr=0x7fd7283ff9d0, tls=0x7fd7283ff700, child_tidptr=0x7fd7283ff9d0) = 2318
...
But amidst all of those calls are two that pop up around when
we print out “Inner Thread 1” that seem relevant: clone and
futex.
However, there is only one call to each of those, despite the fact that we are creating two threads.
After reading more about strace, it looks like we need
to use the -f flag in order to trace through the calls
of all the spawned threads from a process.
While we’re at it, let’s filter this list to just print the
calls to futex and clone.
$ strace -f -e clone,futex ./target/debug/concurrency-bp
Clone
Let’s start by taking a look at the clone syscall invocation:
clone(Process 2328 attached
child_stack=0x7fd565ffeef0, flags=CLONE_VM|CLONE_FS|CLONE_FILES|CLONE_SIGHAND|CLONE_THREAD|CLONE_SYSVSEM|CLONE_SETTLS|CLONE_PARENT_SETTID|CLONE_CHILD_CLEARTID, parent_tidptr=0x7fd565fff9d0, tls=0x7fd565fff700, child_tidptr=0x7fd565fff9d0) = 2328
Reading through the docs on clone,
clone is a syscall that creates a new process is allowed to share the same “memory space”
with the calling process. This is in contrast to another Linux syscall used to
create processes, fork, which creates processes with their own memory space.
This is what the CLONE_VM flag above enables.
This property of “cloned” processes makes it a great candidate for thread implementations.
The CLONE_THREAD flag that is passed to clone is really the one that
we’re interested in here. From the docs:
A new thread created with CLONE_THREAD has the same parent process as the caller of clone() (i.e., like CLONE_PARENT), so that calls to getppid(2) return the same value for all of the threads in a thread group.
Aha! So because Rust uses the CLONE_THREAD flag, the parent of “Inner Thread 2” is
set to be the parent of “Inner Thread 1”. If this flag were not to be used, the
newly spawned thread would instead have its parent be “Inner Thread 1”.
It’s worth noting here too that clone is the syscall used by the
pthreads
C library, which is commonly used for creating threads in C.
Futex
The other relevant syscall is futex. The docs
describe it as a method that allows for a process to “wait” until a “certain condition becomes
true”.
This is the syscall that is used to implement join. futex and clone
work in tandem to achieve the effect of having one thread block on
another thread terminating.
The high level sketch of how this works is that clone has a flag
called CLONE_CHILD_CLEARTID, that when set, has the ability to
“wake up” a call to futex. The CLONE_CHILD_CLEARTID has a an
associated id, which the calling thread can then pass to the
call to futex. Then, when the cloned thread terminates,
it will send a “wake up” signal to the futex, and the
calling thread will be unblocked.
Conclusion
Actually using futex and clone in programs is pretty
complicated, which is why Linux provides higher level
constructs for handling threading. Unless you are working
on these higher level constructs, it’s unlikely you’ll
ever encounter these raw syscalls.
Another main takeaway from this exercise was how strace can
save a bunch of time in terms of understanding how a
program interacts with the underlying operating system.
You don’t have to start by tracing through an unfamiliar
codebase–the syscalls used can give a lot away about
how a program works.
Also, the descriptions of syscalls and their APIs are pretty readable. Don’t be afraid to dig in and read these!
While this barely scratched the surface for how threads work, hopefully you’ve been inspired to learn more and better understand how your programs interact with the operating system.
